Combi Series –
Combining the benefits of air purification, cooling, heating, and pressurization
The COMBI air filtration unit is a device designed to solve all your air purification needs combined with temperature control and pressurization.
It is engineered to supply the optimum combination of efficient HEPA14 air purification and provide a large number of room air changes per hour to minimize the spread of airborne diseases to patients and health care workers. Featuring high quality and performance, the COMBI is proven to deliver exceptional results with minimum maintenance.
Made with epoxy coated steel and aluminum components, it is sturdy and ensures durability. These devices offer two levels of protection, enabling them to filter out a range of particles through a pre-filter and a main filter.
It is available in various size combinations that make it ideal for health care applications with minimal installation time and costs.

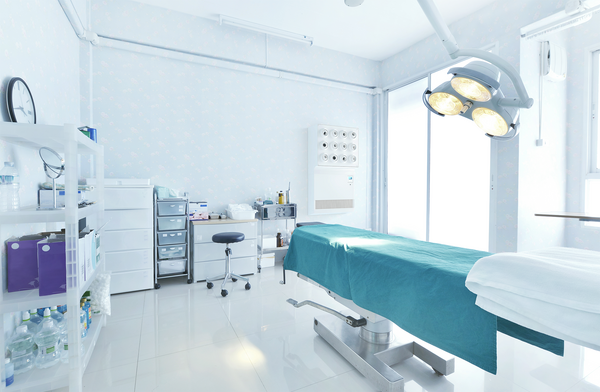

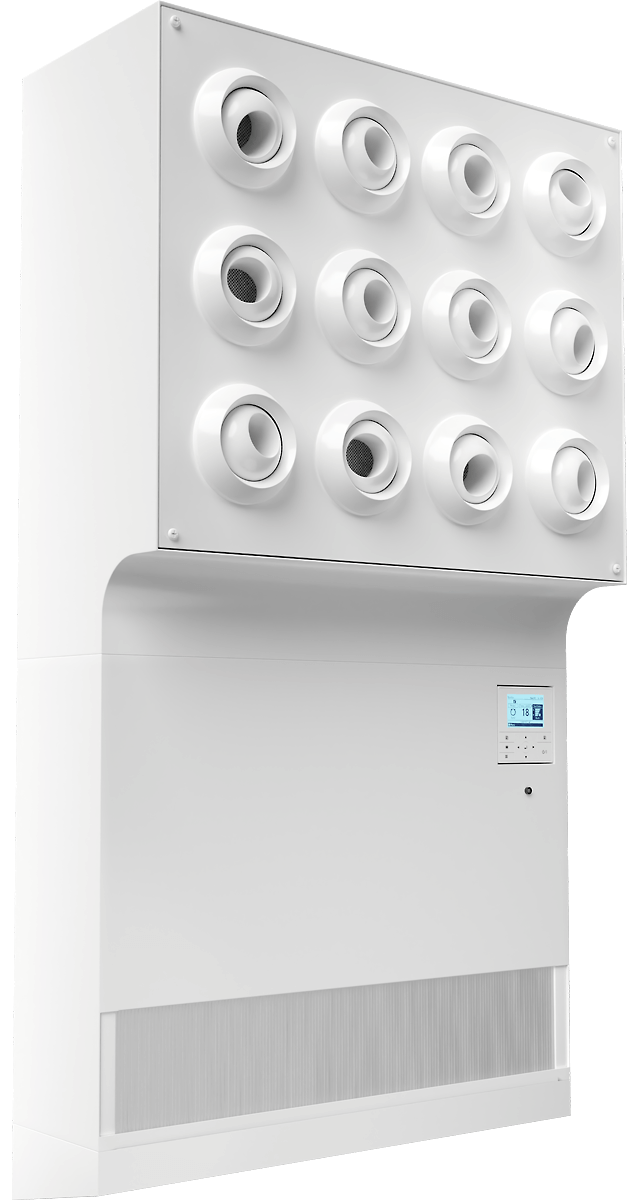

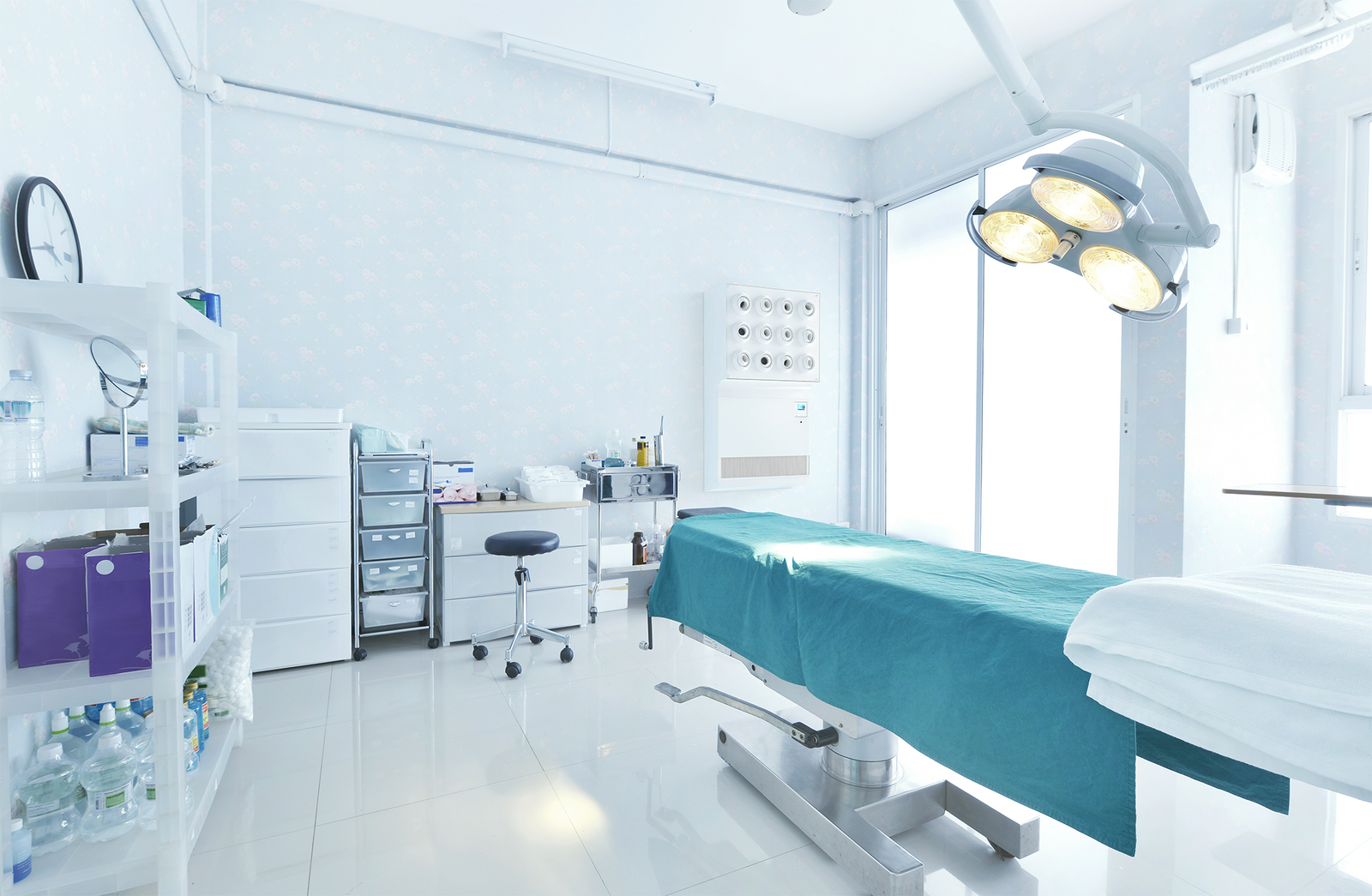

Combi 1.5
Filtration, cooling, heating & positive pressure in one device
- Innovating product
- Better and cheaper than Laminar Flow
- Adjustable Air Nozzles for perfect airflow
- Creates high efficiency Cleanroom Class ISO6 or even ISO5
- Installation: 1 day max.
- Results within 30 minutes
- Clean Air Capacity: 800 m3/hour maximum, with 1/4 of fresh air (optional)
- Only needs W 90 cm x H 154 cm x D 34 cm of wall space
- Quiet operating level
- Max. distance between inside & outside unit: 25 meter
To protect immune compromised patients
To upgrade ICU’s, laboratories and O.T’s
Note
Pressure difference depends on air tightness of the room. For information and advice contact MedicCleanAir.

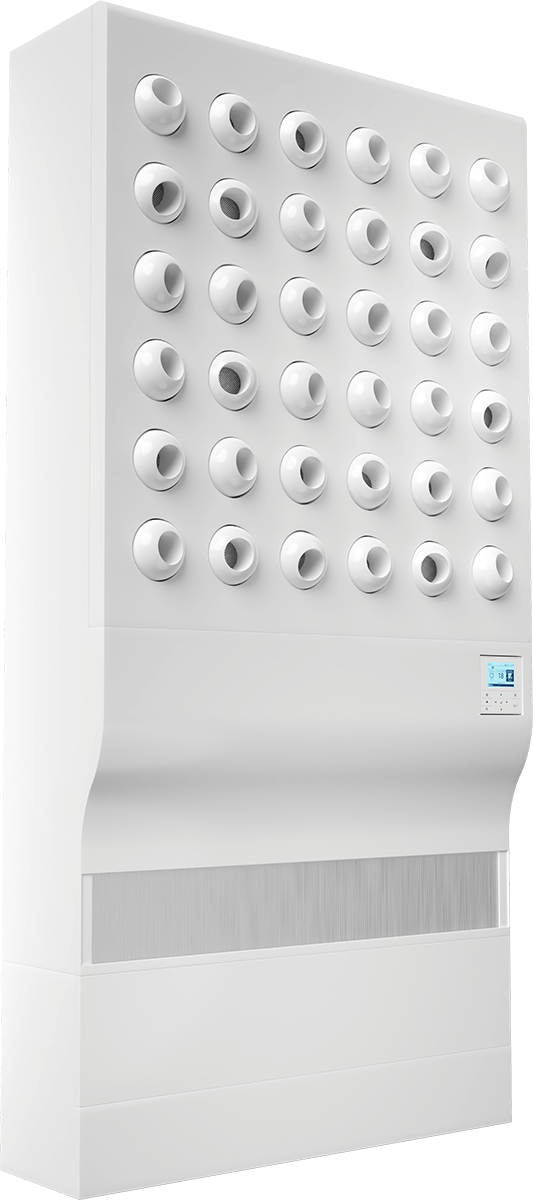

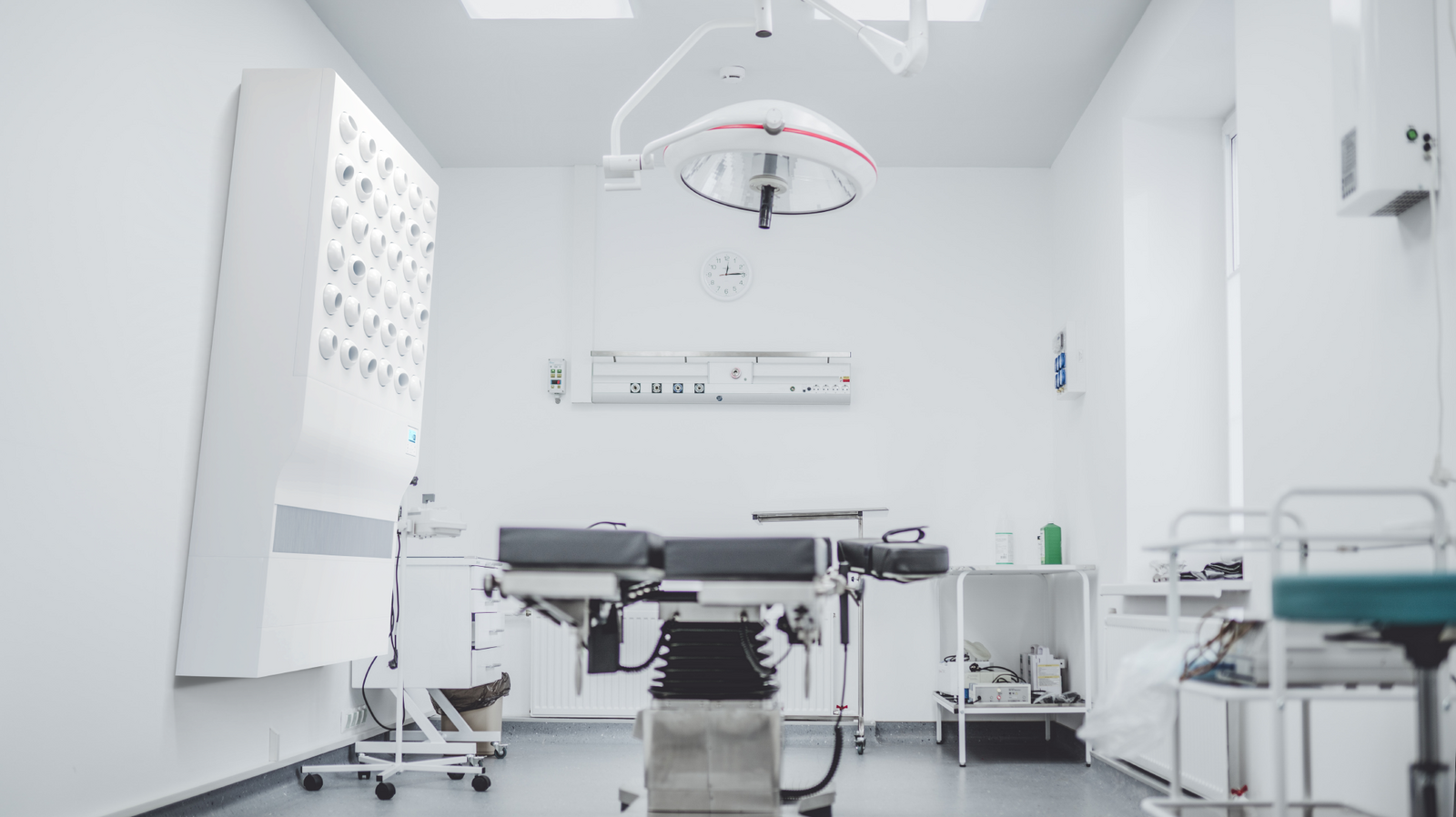

Combi 2.2
Filtration, cooling, heating & positive pressure in one device
- Innovating product
- Better and cheaper than Laminar Flow
- Adjustable Air Nozzles for perfect airflow
- Creates high efficiency Cleanroom Class ISO6 or even ISO5
- Installation: 1 day max.
- Results within 30 minutes
- Clean Air Capacity: 800 m3/hour maximum, with 1/4 of fresh air (optional)
- Only needs W 90 cm x H 154 cm x D 34 cm of wall space
- Quiet operating level
- Max. distance between inside & outside unit: 25 meter
To protect immune compromised patients
To upgrade ICU’s, laboratories and O.T’s
Note
Pressure difference depends on air tightness of the room. For information and advice contact MedicCleanAir.
Compare our models
Installation
- 2 days installation time max.
- Dimensions: 90 x 146 x 34 cm
Performance
- Results within 20 minutes
- Helps achieve ISO6/ISO5 cleanroom classifi cation
- Clean air capacity: 480 to 800m³
Filtration & hardware
- HEPA14 main filter with PU sealing
- ISO ePM10 50% pre-filter (old norm M5, EN779)
- Certifi ed leak-tested filter (EN1822)
- 12 adjustable air nozzles
- Programmable controller
- Security control on filter status by sensor and clock
Installation
- 2 days installation time max.
- Dimensions: 110 x 177 x 33 cm
Performance
- Results within 20 minutes
- Contributes to ISO6/ISO5 cleanroom classification
- Clean air capacity: 750 to 930m³
Filtration & hardware
- HEPA14 main filter with gel sealing
- ISO ePM10 50% pre-filter (old norm M5, EN779)
- Certifi ed leak-tested filter (EN1822)
- 36 adjustable air nozzles
- Programmable controller
- Security control on filter status by sensor and clock
MedicCleanAir benefits
Directional airflow for 100% room coverage
Is able to achieve ISO6 or even ISO5 level
Filter detection by ID code (filter condition)
Remote control by code (security)
Used in hospitals, clinics and medical facilities
General use in
Operating theatres, intensive care units, isolation wards, etc.
Immune-compromised patients – positive pressure
Oncology, haematology, neonatology, transplant, burn units, etc.
